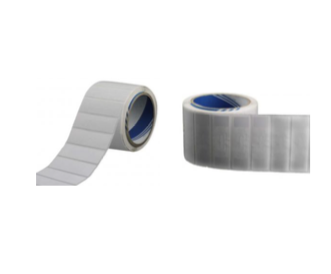

RFID Tag – SH-L7423 UHF RFID Self-Adhesive Label Tag
- SH-L7423 Can Package Into Wet Inlay, Standard Card Or The Other Heterotypic Tags, Achieving The Needs Of Industry, And Application.
- High Performance RFID Label Tag Alien 9962 Wet Inlay ISO18000-6C UHF Self Adhesive Sticker
- It Is Convenient To Stick With The Characteristics That Widely Applied To Aviation, Warehousing, Retail, Clothing, Medical, Anti Counterfeiting And Other Fields.
- Our Excellent R&D Team Can Customize The Design Of High Performance Tag Antenna With Special Specification.
Brief Specification
Basic Parameters
Model: SH-L7423
Type: UHF Passive RFID Tags
Frequency: 860 ~ 960MHZ
Standards / Protocols:
EPC CLASS1 GEN2, ISO 18000-6C
Physical Parameter
Size: 74 * 23mm = 2.91 * 0.9inch
Inlay Material: PET + AL
Outer Material: Copper Paper / PET / PVC / Thermal Paper
Performance Parameter
Memory Size: Up To 512bit
Chip: Impinj M5 / Alien H3 / Alien H4
Operating Mode: Read / Write
Reading Distance:
8M (Related To Reader Performance And Working Environment)
Environmental Parameter
Temperature: Operating -20°C~50°C Storage -40°C~100°C
Specific Applications
Applications: Aviation, Logistics, Warehousing, Retail, Clothing, Medical, Anti-Counterfeiting etc.
RFID Tag – SH-I0501 UHF RFID Jewelry Label Tag
- Jewelry Tag Is Specially Designed For The Management Of Small Sized Objects.
- It Makes To Management Of Small Sized Objects Easy, Quick And Accurate; Hence Greatly Improve The Management Efficiency.
Brief Specification
Basic Parameters
Model: SH-I0501
Type: UHF Passive RFID Tags
Frequency: 860 ~ 960MHZ
Standards / Protocols: EPC CLASS1 GEN2, ISO 18000-6C
Physical Parameter
Size: 40 * 30mm = 1.57 * 1.18inch (Customised Design)
Inlay Material: PET + AL
Outer Material: Copper Paper / PET
Performance Parameter
Memory Size: Up To 512bit
Chip: Impinj M5 / Alien H3 / Alien H4
Operating Mode: Read / Write
Reading Distance:
1M (Related to Reader Performance and Working Environment)
Environmental Parameter
Temperature: Operating -20°C~50°C Storage -40°C~100°C
Specific Applications
Applications: Jewelry, Necklaces, Bracelets, Rings, Earnings, Sunglasses, Trinkets etc.

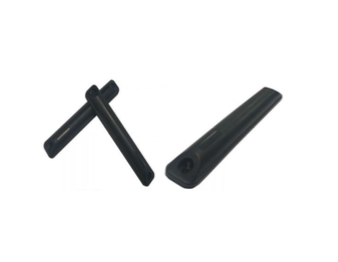

RFID Tag – SH-I0101 UHF RFID Apparel Hanging Tag
- Jewelry Tag Is Specially Designed For The Management Of Small Sized Objects.
- Suitable For High-Class Clothing, School Uniforms, Medical Apparel, Hotel Uniforms, Special Clothing And So On.
- Excellence Performance On The Production Management Of Clothing, Inventory, Logistics Tracking And The Anti Counterfeiting Of Goods.
Brief Specification
Basic Parameters
Model: SH-I0101
Type: UHF Passive RFID Tags
Frequency: 860 ~ 960MHZ
Standards / Protocols: EPC CLASS1 GEN2, ISO 18000-6C
Physical Parameter
Size: 136 * 21 * 12mm = 5.35 * 0.83 * 0.53inch
Inlay Material: PET + AL
Outer Material: ABC/Plastic
Performance Parameter
Memory Size: Up To 512bit
Chip: Alien H3
Operating Mode: Read/Write
Reading Distance:
0 – 4M (Related To Reader Performance And Working Environment)
Environmental Parameter
Temperature: Operating -20°C~50°C Storage -40°C~100°C
Specific Applications
Applications The Management Of Assets And Office Supplies.
RFID Tag – SH-I0903 UHF RFID Waterproofing Metal Tag
- SH-I0903 UHF RFID Metal Tag Is Specially Designed For Metal Material, Which Could Be Affixed To Metal Surface And Achieve Long Reading Distance With Excellent Characteristics Of Anti-Metal.
- High Temperature Resistance Waterproof, Acid And Alkali Resistance, Anti-Collision Makes It Fit For Asset And Equipment Management.
Brief Specification
Basic Parameters
Model: SH- I0903
Type: UHF Passive RFID Tags
Frequency: 860 ~ 960MHZ
Standards / Protocols: EPC CLASS1 GEN2, ISO 18000-6C
Physical Parameter
Size: 90 * 40mm = 3.54 * 1.57inch
Inlay Material: PET + AL
Outer Material: Copper Papper / PET / PVC / Thermal Paper
Performance Parameter
Memory Size: Up To 512bit
Chip: Alien H3 / Alien H4
Operating Mode: Read / Write
Reading Distance:
0 – 6M (Related To Reader Performance And Working Environment)
Environmental Parameter
Temperature: Operating -20°C~50°C Storage -40°C~100°C
Specific Applications
Concerts, Parties, Scenic Sport, Tickets, etc.

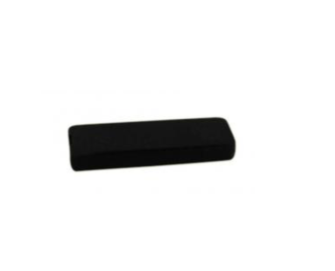

RFID Tag – SH-I0904 UHF RFID Ceramic High Temperatures Resistance Metal Tag
- SH-I0903 UHF RFID Metal Tag Is Specially Designed For Metal Material, Which Could Be Affixed To Metal Surface And Achieve Long Reading Distance With Excellent Characteristics Of Anti-Metal.
- High Temperature Resistance, Waterproof, Acid And Alkali Resistant, Anti Collision Makes It Fit For Asset And Equipment Management.
Brief Specification
Basic Parameters
Model: SH- I0904
Type: UHF Passive RFID Tags
Frequency: 860 ~ 960MHZ
Standards / Protocols: EPC CLASS1 GEN2, ISO 18000-6C
Physical Parameter
25 * 9 * 3mm = 0.98 * 0.35 * 0.12inch (Customised Design)
Inlay Material: Cermaic + AL
Outer Material: Ceramic
Performance Parameter
Memory Size: Up To 512bit
Chip: Alien H3 / Alien H4
Operating Mode: Read / Write
Reading Distance:
0 – 6M (Related To Reader Performance And Working Environment)
Environmental Parameter
Temperature: Operating -20°C~50°C Storage -40°C~100°C
Specific Applications
Equipment, Vehicles, Office Supplies, Computers, Cables, Hazardous Material Identification etc.
